SoundGrid Server Support Information
Aug 01, 2024
Find information about SoundGrid Servers including dimensions, racking options and support notes. This page is best viewed in landscape mode on mobile devices.
| Server Model | Front panel | Size & Racking | Weight & Dimensions | Support notes | |||
| Server One-C V3 (x10) |  | 2U, Half rack, Racking accessories sold separately:
| Length: 22.1 cm / 8.7 inches Height: 8.61 cm / 3.39 inches Device weight: 3.2 kg / 7.1 lbs Package weight: 4.46 kg / 9.85 lbs | Not compatible with the following applications: eMotion LV1 V9, MultiRack SoundGrid V9, SoundGrid Studio V9, SG Rack for VENUE V9 and V10 | |||
| Extreme Server-C V3 (x10) |  | 2U, Half rack, Racking accessories sold separately:
| Length: 22.1 cm / 8.7 inches Height: 8.61 cm / 3.39 inches Device weight: 3.2 kg / 7.1 lbs Package weight: 4.46 kg / 9.85 lbs | Not compatible with the following applications: eMotion LV1 V9, MultiRack SoundGrid V9, SoundGrid Studio V9, SG Rack for VENUE V9 and V10 | |||
| Extreme Server V5 (x10) |  | 2U, Full rack, Rack ears included | Length: 48.3 cm / 19 inches Height: 8.9 cm / 3.5 inches Device weight: 8.3 kg / 18.4 lbs Package weight:10.8 kg / 24 lbs | Not compatible with the following applications: eMotion LV1 V9, MultiRack SoundGrid V9, SoundGrid Studio V9, SG Rack for VENUE V9 and V10 | |||

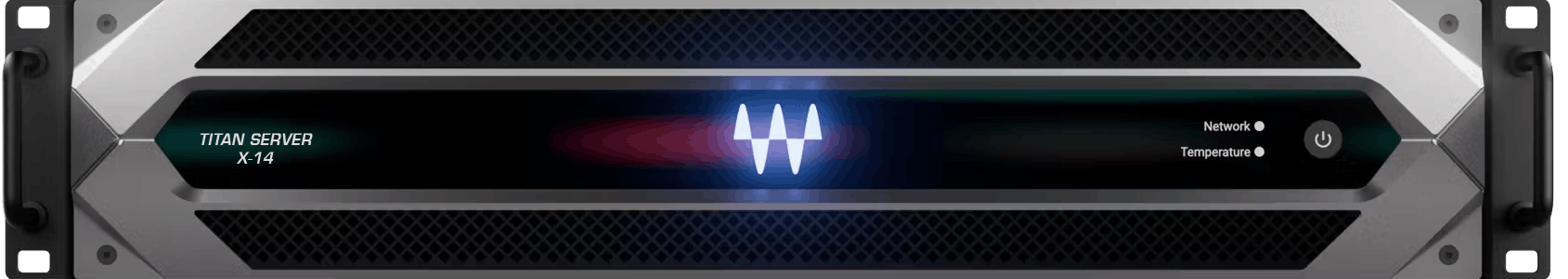

| Titan V1 |  | 2U, Full rack, Rack ears included | Length: 48.2 cm / 19 inches Height: 8.8 cm / 3.5 inches Device weight: 7.0 kg / 15.4 lbs Package weight:8.9 kg / 19.6 lbs | Not compatible with the following applications: eMotion LV1 V9, MultiRack SoundGrid V9, SoundGrid Studio V9, SG Rack for VENUE V9 and V10 | |||

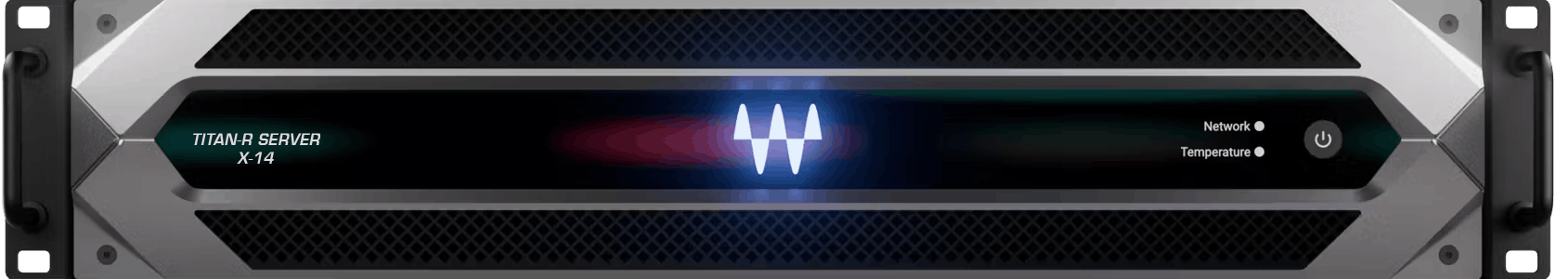

| Titan-R V1 |  | 2U, Full rack, Rack ears included | Length: 48.2 cm / 19 inches Height: 8.8 cm / 3.5 inches Device weight: 7.0 kg / 15.4 lbs Package weight:8.9 kg / 19.6 lbs | Not compatible with the following applications: eMotion LV1 V9, MultiRack SoundGrid V9, SoundGrid Studio V9, SG Rack for VENUE V9 and V10 | |||
| Proton Server V2 |  | 1U, Half rack, Racking accessories sold separately:
| Length: 19.5 cm / 7.6 inches Height: 3.8 cm / 1.5 inches Device weight: 1.06 Kg / 2.34 lbs Package weight:2 kg / 4.4 lbs | Not compatible with the following applications: eMotion LV1 V9, MultiRack SoundGrid V9, SoundGrid Studio V9, SG Rack for VENUE V9 and V10 | |||
| Proton Duo (server and host) |  | 1U, Half rack, Racking accessories sold separately:
| Length: 27.7 cm / 10.9 inches Height: 4.2 cm / 1.7 inches Device weight: 2.3 kg / 5.1 lbs Package weight:3.4 kg / 7.6 lbs | Not compatible with the following applications: eMotion LV1 V9, MultiRack SoundGrid V9, SoundGrid Studio V9, SG Rack for VENUE V9 and V10 | |||
| Mobile Server |  | Not rack mountable | Length: 13.97 cm / 5.5 inches Height: 3.78 cm / 1.49 inches Device weight: 0.680 kg / 1.5 lbs Package weight:2.7 kg / 6 lbs | Supported up to V14.X Firmware (including) | |||
| Extreme Server V3 (X6) |  | 2U, Half rack, Racking accessories sold separately:
| Length: 48.3 cm / 19 inches Height: 8.9 cm / 3.5 inches Device weight: 8.3 kg / 18.4 lbs Package weight:10.8 kg / 24 lbs | Discontinued Supported up to V14.X Firmware (including) | |||
| Extreme Server V4 (X9) |  | 2U, Full rack | Length: 48.3 cm / 19 inches Height: 8.9 cm / 3.5 inches Device weight: 8.3 kg / 18.4 lbs Package weight:10.8 kg / 24 lbs | Discontinued | |||
| Extreme Server-C V1 (X6) |  | 2U, Half rack, Racking accessories sold separately:
| Length: 22.1 cm / 8.7 inches Height: 8.61 cm / 3.39 inches Device weight: 3.2 kg / 7.1 lbs Package weight:4.46 kg / 9.85 lbs | Discontinued Supported up to V14.X Firmware (including) | |||
| Extreme Server-C V2 (X9) |  | 2U, Half rack, Racking accessories sold separately:
| Length: 22.1 cm / 8.7 inches Height: 8.61 cm / 3.39 inches Device weight: 3.2 kg / 7.1 lbs Package weight:4.46 kg / 9.85 lbs | Discontinued | |||
| Server One V3 (X6) |  | 2U, Full rack | Length: 48.3 cm / 19 inches Height: 8.9 cm / 3.5 inches Device weight: 8.3 kg / 18.4 lbs Package weight:10.8 kg / 24 lbs | Discontinued Supported up to V14.X Firmware (including) | |||
| Server One-C V1 (X6) |  | 2U, Half rack, Racking accessories sold separately:
| Length: 22.1 cm / 8.7 inches Height: 8.61 cm / 3.39 inches Device weight: 3.2 kg / 7.1 lbs Package weight:4.46 kg / 9.85 lbs | Discontinued Supported up to V14.X Firmware (including) | |||
| Server One-C V2 (X9) |  | 2U, Half rack, Racking accessories sold separately:
| Length: 22.1 cm / 8.7 inches Height: 8.61 cm / 3.39 inches Device weight: 3.2 kg / 7.1 lbs Package weight:4.46 kg / 9.85 lbs | Discontinued | |||
| Impact Server V4 |  | 2U, Half rack, Racking accessories sold separately:
| Length: 22.1 cm / 8.7 inches Height: 8.61 cm / 3.39 inches Device weight: 3.2 kg / 7.1 lbs Package weight:4.46 kg / 9.85 lbs | Discontinued Supported up to V14.X Firmware (including) | |||
| Proton Server V1 |  | 1U, Half rack, Racking accessories sold separately:
| Length (front to back): 20.5 cm / 8 in Height: 3.8 cm / 1.5 in Device weight: 1.06 Kg / 2.34 lbs | Discontinued | |||
